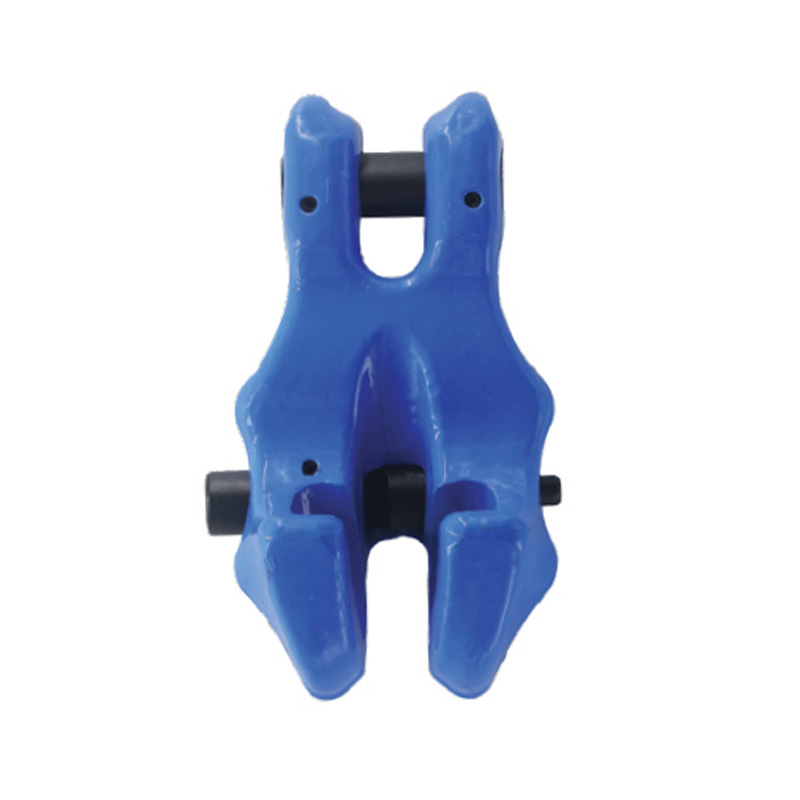

Grade 100 Clevis Shortening Clutch With Safety Pin
Legend Grade 100 Clevis Shortening Clutch with Safety Pin is designed to adjust the length of a chain sling easily and securely. The safety pin ensures the chain remains firmly in place, preventing accidental detachment during use. This clutch provides a simple, direct connection to the chain without reducing the working load limit.
All Legend Grade 100 hooks and components feature clear distinguishing marks for easy identification.
KEY SPECIFICATIONS:
- Surface Finish: Painted Blue
- 25% higher working load limit than G80
- Safety Factor: 4:1
- Complies to AS 3776
- Test Certificates available upon request
| Item Code | Size | WLL | A | B | C | D | E | M | N | L | Weight | Pack Qty |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | T | mm | mm | mm | mm | mm | mm | mm | mm | kg | pc | |
| L100-CCSP-06 | 6 | 1.4 | 38 | 7.5 | 27 | 7.5 | 7.5 | 29 | 16 | 73 | 0.25 | 40 |
| L100-CCSP-08 | 8 | 2.5 | 50 | 9.5 | 33 | 9.5 | 9.2 | 36 | 23 | 92 | 0.43 | 25 |
| L100-CCSP-10 | 10 | 4 | 60 | 11.7 | 43.5 | 11.7 | 12 | 45.4 | 26 | 115 | 0.8 | 14 |
| L100-CCSP-13 | 13 | 6.7 | 79 | 15 | 55 | 15 | 15.5 | 54 | 34 | 149 | 1.67 | 6 |
| L100-CCSP-16 | 16 | 10 | 98 | 19 | 70 | 19 | 18.5 | 70 | 40 | 184 | 4.2 | 3 |
Specifications and dimensions are subject to change without notice.
